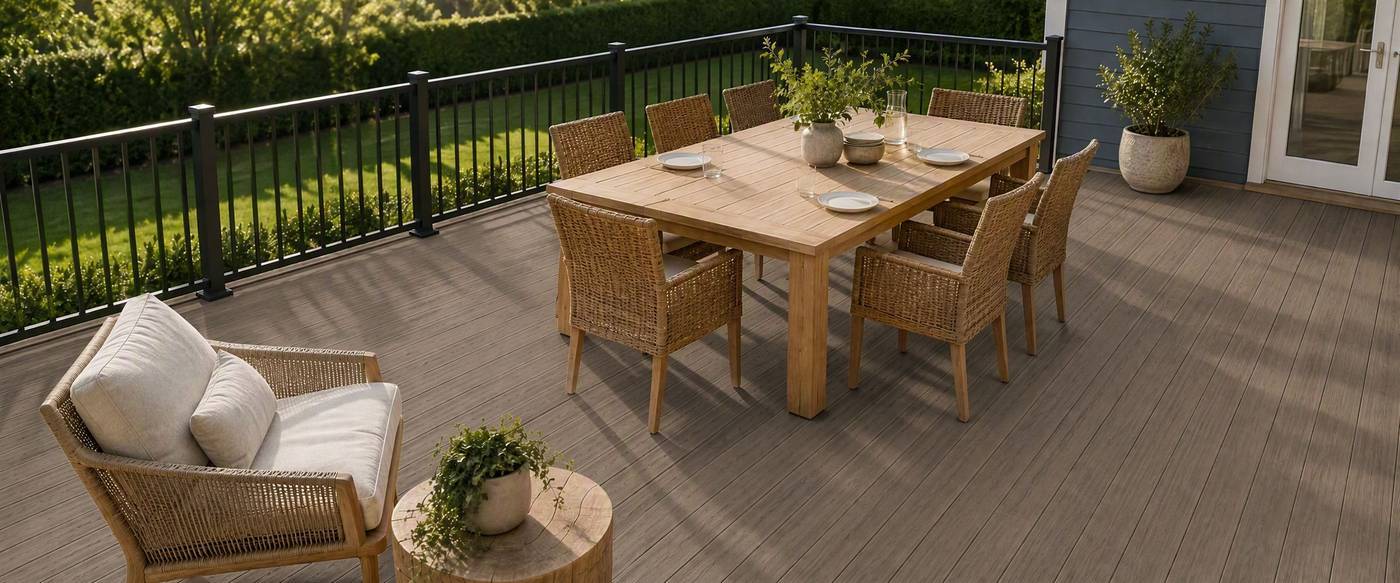

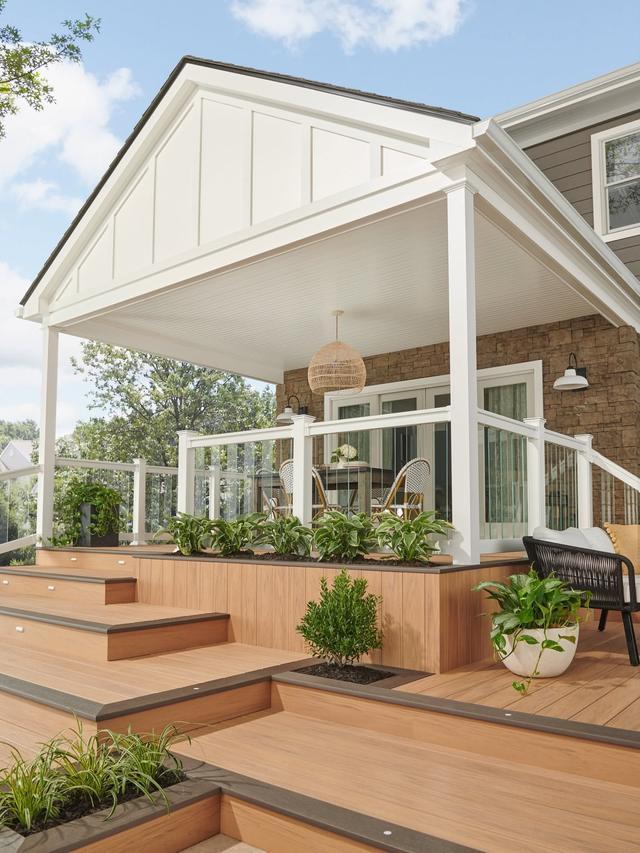

HOHEcotechHOHEcotech ASA-capped PVC decking on a terrace at twilight

HOHEcotech® ASA-Capped PVC Decking & Wall Cladding

Premium ASA-Capped PVC Decking Boards and Outdoor Wall Cladding

HOHEcotech manufactures its ASA-capped PVC products in-house, controlling every stage of production from the foamed PVC core to the protective ASA cap.

2007Manufacturing since
75Extrusion lines
40,000 tAnnual capacity
60+Export markets

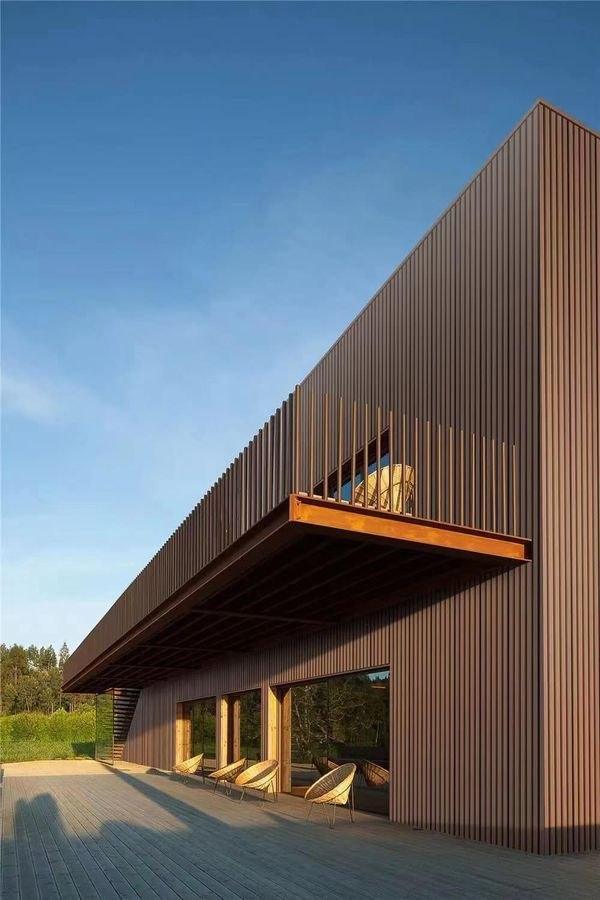

ASA-Capped PVC Wall Cladding

Wall panel projects

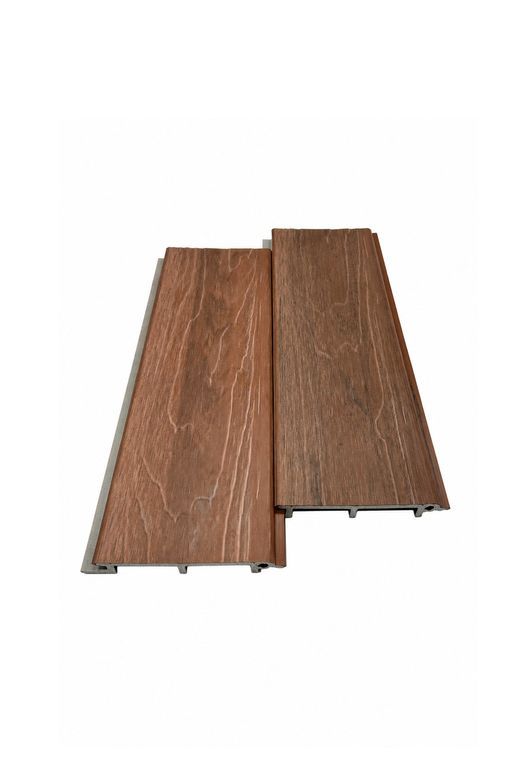

HOHEcotech ASA-capped PVC wall cladding profile 115S16-A

Model: 115S16-A

Dimension: 115*16mm

Cross section drawing of wall cladding profile 115S16-A

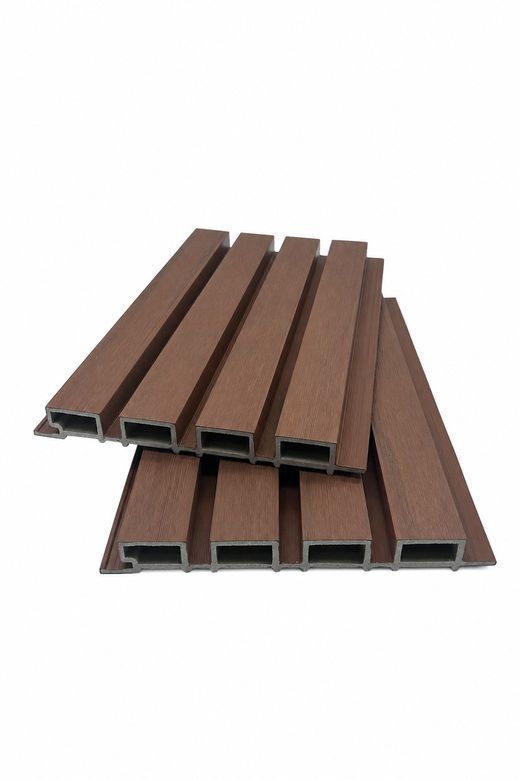

HOHEcotech ASA-capped PVC wall cladding profile 219H26-A

Model: 219H26-A

Dimension: 219*26mm

Cross section drawing of wall cladding profile 219H26-A

Custom Profiles Available on Request

With more than 600 moulds available in our in-house tooling workshop, HOHEcotech offers flexible customisation options to meet different market and project requirements. If you cannot find the profile you need in our existing range, simply share your preferred dimensions, colour, and surface finish. Our team will help you find or develop a suitable solution.

Ask about a profile

What Is ASA-Capped PVC Decking?

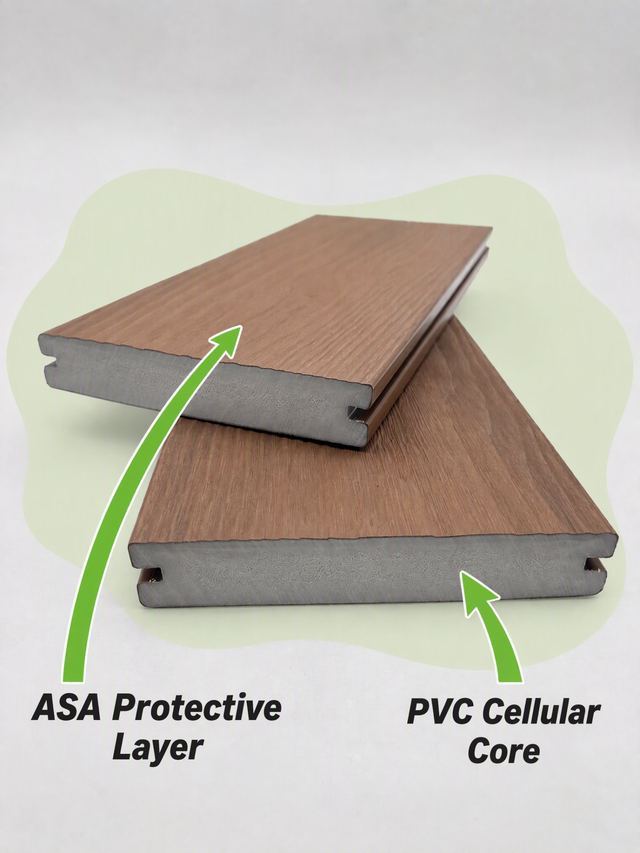

ASA-capped PVC decking board structure: PVC core and ASA cap layer

ASA-capped PVC decking is an advanced outdoor decking solution manufactured through a co-extrusion process. It combines a foamed PVC core with a durable ASA protective cap, creating a board designed for long-term outdoor use. At HOHEcotech, both layers are formed simultaneously through a specially designed extrusion die. This integrated structure eliminates the need for a separate adhesive bonding layer between the core and the surface cap. The PVC core provides structural support and screw-holding strength, while the ASA cap provides colour stability and helps protect the board from UV exposure and weathering.

  • 01

    Foamed PVC Core

    The core is made from cellular polyvinyl chloride (PVC), without wood fibres. It provides structural support and screw-holding strength while offering low water absorption. Unlike wood-plastic composite materials containing wood fibres, the PVC core is not susceptible to wood-fibre-related rot.

  • 02

    ASA Protective Cap

    ASA (Acrylonitrile Styrene Acrylate) is a weather-resistant thermoplastic material used as the outer protective layer. Co-extruded over the PVC core, the ASA cap provides the board's colour and wood-grain appearance while helping protect the core from UV exposure and outdoor weathering.

  • 03

    Integrated Co-Extruded Structure

    The PVC core and ASA cap are formed simultaneously in a single co-extrusion process. This creates an integrated interface between the two layers without a separate adhesive bonding line, helping maintain the structural integrity of every HOHEcotech board.

Why Choose HOHEcotech ASA-Capped PVC Decking?

Six Key Performance Features for Long-Term Outdoor Use. Designed to withstand sunlight, moisture, temperature changes, and everyday outdoor use, HOHEcotech ASA-capped PVC decking combines practical material properties with low-maintenance performance.

Weather Resistance

Designed for outdoor environments exposed to sunlight, rain, salt air, and repeated wet-dry cycles. The ASA protective cap helps maintain surface performance under changing weather conditions without requiring regular protective coating treatments.

Colour Stability

The ASA protective cap provides enhanced resistance to UV exposure, helping reduce surface fading and discolouration and maintain the board's appearance over time.

Low Water Absorption

According to our test results, the product has a water absorption rate of 0.64% and thickness swelling of 0.26% after 24 hours of immersion, tested in accordance with ASTM D1037.

Surface Hardness and Abrasion Resistance

The ASA protective surface has a Shore D hardness of 75, with an abrasion loss of 105.5 mg according to our test results.

Low Maintenance

No regular painting, oiling, or wood-preservative treatment is required. Routine cleaning with water, mild soap, and a soft brush is generally sufficient to keep the surface clean and maintain its appearance.

Predictable Thermal Movement

The thermal expansion coefficient is 3.67 × 10⁻⁵ per °C. For a 5.4 m board, this corresponds to approximately 11 mm of expansion over a temperature change of 55°C. Proper expansion gaps are essential to accommodate thermal movement.

HOHEcotech Colour Range and Manufacturing Capabilities

A Selection of Ten Colours Manufactured on Five Dedicated PVC Extrusion Lines

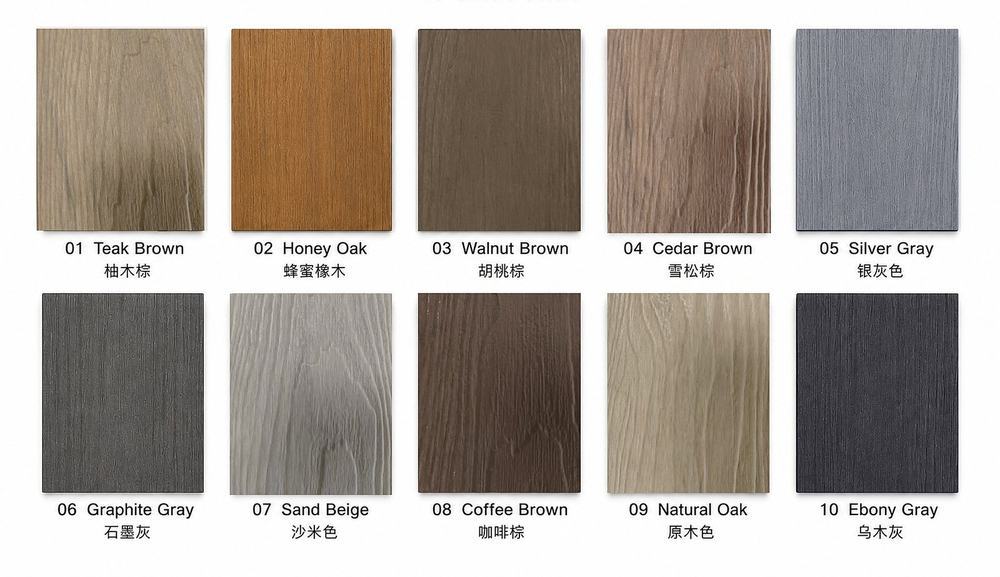

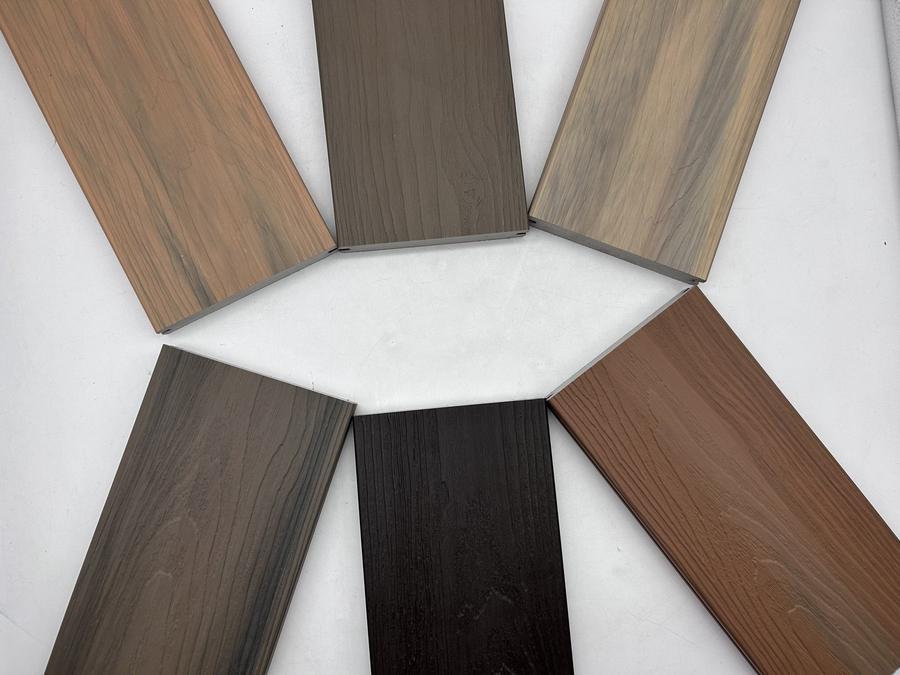

HOHEcotech ASA-capped PVC decking colour range

Long-Lasting Colour Integrated into the ASA Cap

Colour is integrated into the ASA cap layer rather than simply printed onto the board surface. This helps maintain the board's wood-grain appearance and colour during normal outdoor use and everyday wear.

  • A selection of wood-grain colours, ranging from light ash to dark walnut.
  • Custom colours and brushed or embossed surface finishes available for qualified orders.
  • Matching trims, fascia boards, and installation clips available.
  • Free sample boards and physical colour cards available upon request.
Request a colour card

In-House Manufacturing by HOHEcotech

HOHEcotech operates 75 extrusion production lines at its manufacturing facility in Chengbei Industrial Zone, Huangshan, including five dedicated PVC extrusion lines. Our in-house production capabilities allow us to maintain greater control over material selection, extrusion processes, product consistency, and customised specifications. With dedicated PVC production capacity and in-house tooling resources, we support customers with customised product dimensions, colours, and surface finishes. Every HOHEcotech PVC board is backed by a 25-year warranty, subject to the applicable warranty terms and installation requirements.

HOHEcotech PVC extrusion line

Installation Guidelines for ASA-Capped PVC Decking

PVC decking has different physical characteristics from WPC decking, particularly in terms of thermal expansion and installation requirements. To help ensure reliable performance, HOHEcotech provides professional installation guidelines covering five key areas.

  1. 01

    Acclimatise the Boards

    Unpack the decking boards and lay them flat at the installation site for at least 24 hours before installation.

  2. 02

    Prepare the Joist Substructure

    Install a stable, well-drained joist framework. Keep joist spacing within 300 mm for residential areas, 250 mm for commercial areas and 200 mm for 45° diagonal installation. Maintain at least 30 mm clearance beneath the joists.

  3. 03

    Allow for Expansion Gaps

    Leave 5–8 mm between board sides, 8–10 mm between board ends and at least 10 mm around walls, posts and steps. For decks longer than 6 m, provide a 10 mm expansion joint every 6 m.

  4. 04

    Install the Hidden Clips

    Secure the starter clips first, pre-drill where required, then install hidden clips along each joist. Do not overtighten screws or restrict board movement. Use 304 stainless steel screws for general outdoor applications and 316 stainless steel in coastal or highly corrosive environments.

  5. 05

    Support Board Joints and Finish the Edges

    Provide separate double joists beneath board-end joints, with a 10 mm drainage gap between joists. Stagger board joints and limit board-end overhang to 30 mm. Pre-drill fascia boards and use 304 or 316 stainless steel screws at maximum 400 mm spacing. Fascia boards are decorative and non-load-bearing.

These installation recommendations are based on the HOHEcotech installation manual for residential and commercial applications. Where local building regulations or engineering requirements are stricter, the stricter requirements should always be followed. Download the Complete HOHEcotech Installation Manual.

FAQ About HOHEcotech PVC Decking

Does PVC Decking Become Brittle Outdoors?

Not necessarily. Outdoor durability depends on the material formulation, production quality, UV protection, and installation conditions. HOHEcotech combines a foamed PVC core with an ASA protective cap to provide structural support and enhanced weather resistance. Our product has passed the freeze-thaw test in accordance with ASTM D7032, with the corresponding test report available in our technical document centre. Proper installation and compliance with the recommended expansion gaps are also essential for long-term performance.

What Does the HOHEcotech PVC Decking Warranty Cover?

HOHEcotech backs its PVC product range with a 20-year warranty, subject to the applicable warranty terms. The warranty requires proper installation and maintenance in accordance with the HOHEcotech installation manual, including adequate substructure ventilation, correct expansion gaps, and suitable stainless steel fasteners. Detailed warranty terms are provided with the product quotation.

How Does HOHEcotech Control Product Quality?

Quality control is integrated into every stage of our manufacturing process. Our quality management procedures include: raw material inspection; production process monitoring; dimensional and appearance checks; finished product inspection before packaging. Product test reports are available upon request. Third-party inspections before shipment are also welcome.

Can HOHEcotech Customise Colours, Lengths, and Packaging?

Yes. HOHEcotech supports OEM and ODM services to meet different market and project requirements. Customisation options may include product dimensions and profiles; colours and surface finishes; board lengths; product packaging; matching accessories. Customisation feasibility depends on technical specifications, order quantities, and production schedules. Contact our team with your requirements for a tailored solution.

HOHEcotech® | Samples, Technical Documentation & Professional Support

Experience the Quality Before You Specify It

HOHEcotech provides free sample boards, colour cards, and installation documentation to help you evaluate our ASA-capped PVC decking and wall cladding. Tell us about your project, and we'll help you find the most suitable HOHEcotech solution.
